What Electrical Do I Need Setup For My Container Unit?
460 volts 3 phase is ideal but reefers will run on 400-500 volts 3 phase 30amp breaker in panel with 30amp disconnect close to unit. This is most common in commercial properties, warehouses, and industrial.
Then there is 3 phase that is 208-230
Transformer boots power from 208-230 3 phase to 416-460 3 phase
Single fade requires 50 amp breaker in panel and 50 amp disconnect close to unit
Duel voltage capability’s to step up from 208-230 3 phase to 416-460 3 phase.
We have units to accommodate single phase and that requires a 15 amp breaker, you find this in light commercial, residential.
Carrier Refrigeration units can be customized to meet customer-specific needs.
You can add a Dual-Voltage Transformer to “step up” your existing power situation. This modular transformer option offers an easy means of adding dual-voltage capability — to step up from 230V to 460V.
If you are renting, we will include a transformer at no extra charge. If you were purchasing, you can purchase a transformer directly from us.

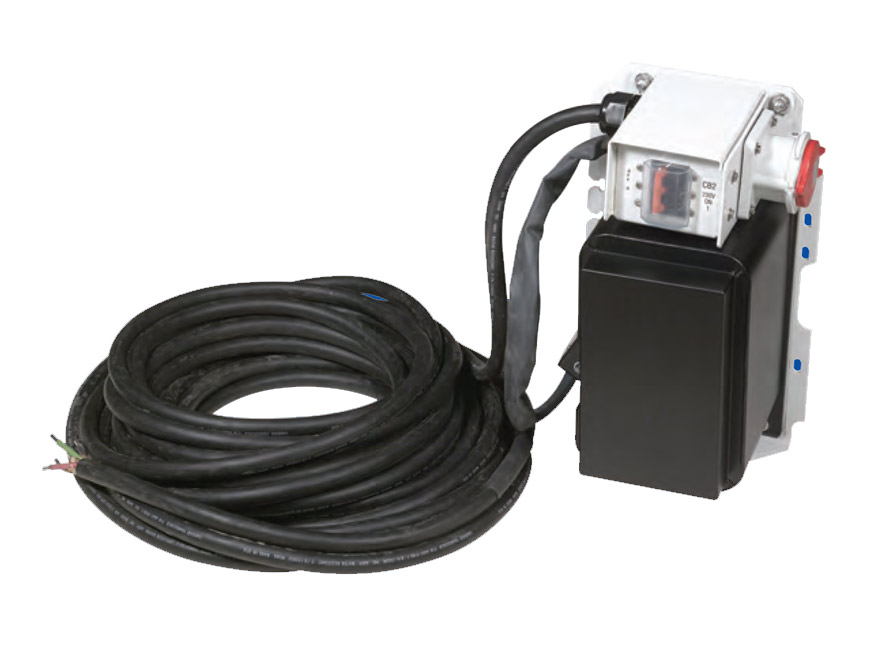

230V to 460V
Dual-Voltage Transformer
Purchase: $3500
The modular Carrier transformer option offers an easy means of adding
dual-voltage capability — to step up from 230V to 460V. When specified,
Carrier systems may be fitted with mounting provisions for adding a dual-
voltage transformer at the factory, or in the field, as needed. The simple
bolt-in arrangement is fast, and the transformer may be optionally equipped
with its own circuit breaker. A high-voltage power outlet is included. As a
result, no wiring connections are needed inside the control box
Next Best Steps
01. Contact An Electrician
If you’re unsure about your specific electrical situation or know you need to get a power solution established, we suggest contacting an Electrician as soon as possible.
We can deliver your Refrigerated Container unit within 2-3 days of placing your order so it will best to align with an Electrician’s schedule to complete your order.
02. Have Your Electrician Contact Us
You can always instruct your chosen electrician to reach out to us on behalf of your project.
You can also send them to this page if they are unfamiliar with Refrigerated Containers.
03. Reach out and we'll be happy to discuss your project
We’ve set up thousands of customers with Refrigerated Container units and we’re happy to hop on a call to discuss your needs from the start.
